An HVAC engineering team needed QuickServer to pull live weather data from the VisualCrossing API and hand it off to downstream Modbus and BACnet workflows. When the HTTP Data configuration crashed the gateway into recovery mode, Chipkin reproduced the API path, supplied a known-good configuration, and helped the customer recover the device without replacing the installed hardware.
This project was valuable because the protocol conversion itself was not the hard part. The hard part was getting a fielded weather integration back out of a crash loop quickly enough that the controls team could resume HVAC work instead of treating the gateway as failed hardware.
At a Glance
- Industry: HVAC / building automation
- Customer: North American HVAC controls engineering team
- Facility type: Commercial HVAC application
- Client role: System applications engineering
- Project scale: One QuickServer gateway serving weather data to downstream BAS workflows
- Internal reference: FSE16146
- Protocols: From: HTTP Data / VisualCrossing API -> To: Modbus and BACnet

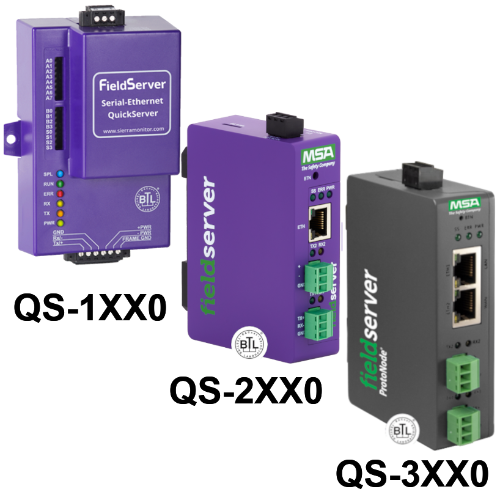

- Chipkin product: Chipkin QuickServer
- Project start: May 2023
Architecture: VisualCrossing weather API -> HTTP Data -> Chipkin QuickServer -> Modbus and BACnet HVAC consumers
HTTP Data to Modbus and BACnet Challenge
The upstream source was the VisualCrossing weather API, queried through the QuickServer HTTP Data driver for Shoreview, Minnesota weather data. The downstream side needed the resulting values exposed through Modbus and BACnet so the HVAC engineering team could keep using the weather points inside their existing controls workflow.
The project stalled when adding the HTTP node forced the QuickServer into recovery mode. After the customer attempted firmware reloads, deleted CSV files, and even a button reset, the unit would still fall back into an error state and the Chipkin UI was no longer consistently available.
That made this a recovery problem, not just a protocol-conversion problem. The customer needed to know whether the issue was the VisualCrossing API, the HTTP Data driver, the installed firmware, or a corrupted configuration state. Until that was resolved, the Modbus and BACnet handoff was unavailable.
Why Chipkin for HTTP Data Recovery
This was a strong fit for Chipkin because the project combined web API parsing, BAS protocol delivery, and low-level QuickServer recovery work. The customer did not need vague advice to reboot the unit. They needed someone to validate the exact VisualCrossing request, confirm whether the API path itself was healthy, and provide a clean configuration that could be tested immediately.
Chipkin also added value by testing the VisualCrossing weather API locally. Once the API call was shown to be valid, the troubleshooting effort could focus on restoring the QuickServer to a clean working state instead of blaming the weather service.
The Solution: QuickServer Recovery and Clean Rebuild
Chipkin first reviewed the reported reproduction steps and the failed diagnostic output. The customer shared the exact VisualCrossing timeline URL being used, which let Chipkin test the same API path independently.
When Chipkin could not reproduce the failure locally, Steven sent a known-good VisualCrossing configuration that included a working HTTP Data setup. That shifted the project from guesswork to controlled recovery.
The customer then performed a factory reset, reloaded firmware, restored the shipped firmware build that returned the Chipkin UI to a normal state, and imported the tested configuration. After that, the customer replaced Chipkin’s API key with their own and resumed normal operation.
The decisive move was not a custom firmware rewrite. It was isolating the problem away from the API itself, restoring the gateway to a clean state, and giving the customer a tested configuration that proved the HTTP Data to Modbus and BACnet path still worked.
For another weather-data project delivered through QuickServer, see the WeatherAPI XML to Modbus TCP Dairy Barn Automation case study.
HVAC Weather Integration Results
The project returned the weather-data gateway to service and restored the customer’s downstream Modbus and BACnet workflow.
Project proof points:
- The exact VisualCrossing API request was validated so the team could stop treating the weather service as the root cause.
- A tested QuickServer configuration was provided and imported after recovery.
- The customer restored the Chipkin UI and working firmware state instead of replacing the gateway.
- The Modbus and BACnet handoff returned to operation once the clean configuration was loaded.
The customer summary was explicit:
“We’re back in business. This firmware brought the device back to a normal state, including the Chipkin UI. I uploaded your config file and it was all systems go!!”
- System applications engineer, HVAC controls team
Have a Similar HTTP Data Gateway Project?
Need to expose web API data to Modbus or BACnet and recover a QuickServer that has fallen into a bad configuration state? Chipkin can help with HTTP Data driver setup, recovery troubleshooting, and clean BAS handoff design. Tell us about your project.
Frequently Asked Questions
Can QuickServer expose HTTP Data to both Modbus and BACnet?
Yes. This project used QuickServer to consume weather data from an HTTP source and serve it to downstream Modbus and BACnet workflows.
Can Chipkin help recover a QuickServer stuck in recovery mode?
Yes. In this case, Chipkin helped isolate the issue, validated the external API independently, and guided the customer through a factory reset, firmware reload, and clean configuration import.
Was the VisualCrossing API itself the problem?
No. Chipkin tested the same VisualCrossing request locally and could not reproduce the failure, which helped narrow the problem to the device state and configuration recovery path.
