A home automation integrator needed to expose Control4 XML data to a BACnet/IP network for a multi-site deployment. Chipkin QuickServer helped turn an initial connection failure into a working gateway handoff by correcting the BACnet-side assumptions and guiding the integrator through the final setup remotely.
The value in this project was not a large commissioning marathon. It was the combination of pre-shipment configuration, a fast troubleshooting loop, and a support session that got the customer past the one parameter mismatch stopping the deployment.
At a Glance
- Industry: Home automation / smart building integration
- Customer: UK-based home automation integrator
- Facility type: Multi-site smart building deployment
- Client role: Integration and commissioning team
- Project scale: One QuickServer gateway with remote installation support
- Protocols: From: Control4 XML -> To: BACnet/IP

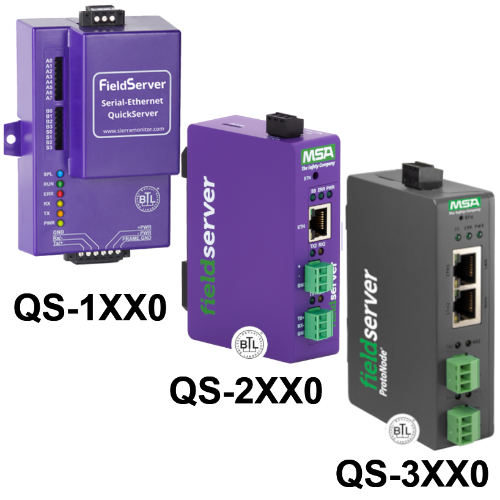

- Chipkin product: Chipkin QuickServer
- Project start: January 2021
- Internal reference: FSE12522
Architecture: Control4 automation platform -> XML data -> Chipkin QuickServer -> BACnet/IP network
Control4 XML to BACnet/IP Challenge
The upstream/server side was a Control4 XML integration path. The downstream/client side needed a BACnet/IP presentation that could fit into a building automation workflow without forcing the customer to replace the installed home automation platform.
The project stalled on a practical commissioning detail rather than a protocol mystery. The shipped gateway used a generalized starting configuration, and the initial handshake failed because the assumed BACnet Device ID did not match the real network settings the customer needed in the field.
That made the support model the real differentiator. The customer did not need a long redesign. They needed someone to identify the mismatch quickly, walk through the relevant settings, and get the gateway aligned with the live network.
Why Chipkin
This was a strong fit for Chipkin because the job combined protocol conversion with hands-on commissioning support. Chipkin QuickServer provided the XML-to-BACnet bridge, while Chipkin support handled the final setup questions that often stop smaller integration projects from moving forward.
That matters in crossover projects between home automation and building automation because the protocol bridge is only useful once the commissioning assumptions are correct.
The Solution
Chipkin shipped the QuickServer with a generalized starting configuration so the customer could receive hardware quickly, then completed the final alignment once the field-side BACnet details were confirmed. The support session focused on identifying the right Device ID and walking the integrator through the setup steps needed to establish communication.
The decisive move was not rewriting the project scope. It was correcting the one BACnet-side assumption that blocked the connection and giving the customer enough clarity to continue without a drawn-out back-and-forth.
That produced a reusable pattern for future Control4-to-BACnet projects: quick initial delivery, targeted remote support, and a clean final BACnet/IP handoff.
For another project that converted a specialized upstream system into standard BAS protocols, see the ACC2 to BACnet and Modbus Irrigation Control case study.
Home Automation Gateway Results
The project delivered a working Control4 XML to BACnet/IP integration path for a smart building deployment.
Project proof points:
- A QuickServer gateway was prepared ahead of shipment so the customer could move quickly into setup.
- A remote support session resolved the BACnet Device ID mismatch that blocked the first connection attempt.
- The integration path was made reusable for similar Control4-to-BACnet deployments.
- The customer moved forward with on-site commissioning after the support-assisted configuration cleanup.
Have a Similar Control4-to-BACnet Project?
Need to expose Control4 data to a BACnet/IP network without replacing the source platform? Chipkin can help with QuickServer configuration, remote commissioning support, and protocol bridging for crossover automation projects. Tell us about your project.
Frequently Asked Questions
Can QuickServer convert Control4 XML to BACnet/IP?
Yes. This case study used QuickServer to translate Control4 XML data into a BACnet/IP presentation for the downstream building automation workflow.
What if the first BACnet connection fails because of a Device ID mismatch?
That was the decisive issue in this project. Once the BACnet-side assumption was corrected during remote support, the customer could move forward with commissioning instead of treating the gateway as a protocol failure.
Can Chipkin finish a preconfigured gateway remotely?
Yes. The shipped file can establish the starting point, and Chipkin can then help align the final network settings and commissioning details with the live installation.
